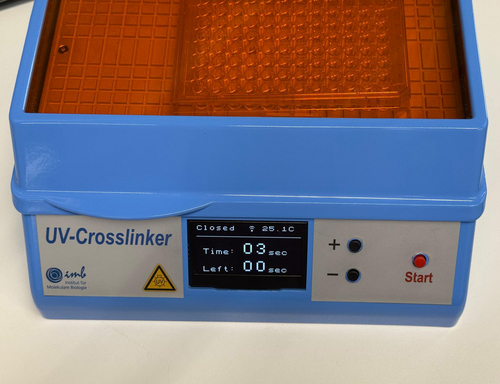

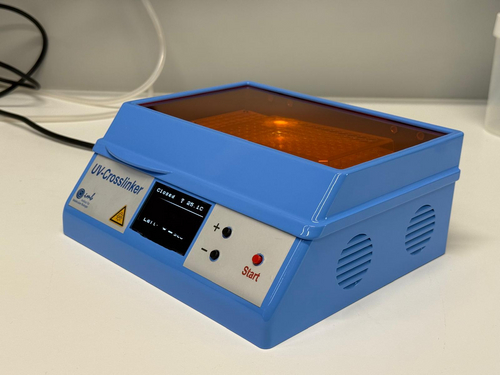

UV Crosslinker Mini
The Crosslinker Mini is a specialised laboratory device designed to deliver precise doses of ultraviolet irradiation to biological or chemical samples in standard 96-well microplates.
The device features a high-intensity solid-state UV light source and a multi-level safety system (Safety Interlock) to protect the operator from UV radiation.
Technical Specifications
- Light source: Solid-state UV emitter (COB-LED, 20 mm), wavelength 365 nm
- Radiation class: UVA
- Optical power: 2850 mW (viewing angle 90°)
- Power supply: 230 V AC, power consumption 50 W
- LED lifespan: Over 10,000 operating hours (active temperature regulation)
- Cooling: Active cooling via two microprocessor-controlled fans
- Protective shield: UV-resistant acrylic glass with high absorption
- Interfaces: Wi-Fi (WPA2), Access Point (AP) mode
- Timer range: 1 to 60 seconds
